Hannay SSN700 Series Hose Reel

Hannay SSN700 Series Stainless Steel Hose Reel to handle 1/4", 3/8", or 1/2" I.D. Hose

Applications: Industrial, Land Drilling, Offshore Drilling, Marine, Pest Control, Pressure Washing, Processing, Steam Cleaning, Washdown

• Standard SSN Series has a narrow frame and compact mounting base.
• Non-sparking ratchet assembly.
• Declutching arbor to prevent damage from reverse winding.
• Standard inlet: 90° stainless steel ball bearing swivel joint, 1/2" female NPT threads.
• Standard outlet: 1/2" female NPT threads.
• Standard pressures to 3000 psi (207 bar).
• Temperatures from +20° F to +400° F (-7° C to +204° C).
• Consult mdi for other pressures and temperatures.
• 4-way roller assembly.
• Constant tension is available consult mdi.
• 304 stainless steel construction.
• Optional SST Mosmatic ½" balanced pressure swivel joint available, subtract 1.50" from "F" dimension, specify when ordering.

1. Specifications subject to change.
2. Reel models and capacities shown are for standard drag applications; for vertical lift applications, consult mdi.
3. Other sizes, from standard components, available on request.
4. Mill finish is standard; satin or polished finishes are optional.
5. Be sure to check dimensions and weights prior to ordering.

Note: A hose stop is necessary to keep spring from unwinding. A flexible connector must be used between the inlet pipe and the inlet swivel joint.

Spring Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
SSN716-16-17J 3/8 35 58
SSN716-16-17J 1/2 35 58
SSN716-19-20J 3/8 50 64
SSN716-19-20J 1/2 50 64
SSN716-23-24-15.5G 1/4 100 94
SSN716-23-24-15.5G 3/8 75 94
SSN716-23-24-15.5G 1/2 65 94
SSN716-23-24-15.5J 3/8 65 79
SSN716-23-24-15.5J 1/2 65 79
SSN716-25-26-15.5B 3/8 75 101
SSN716-25-26-15.5B 1/2 75 101
SSN718-25-26-15.5G 3/8 100 96
SSN718-25-26-15.5G 1/2 100 96

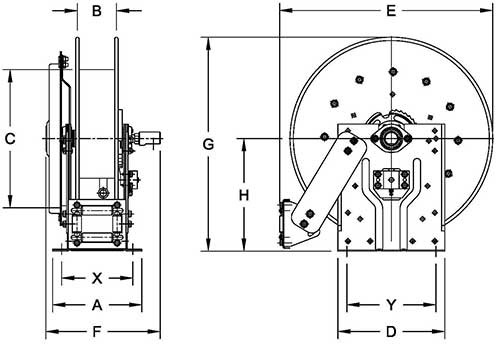

Dimensions for SSN700 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
SSN716-16-17J 10 4 10.5 12 18.5 13 17 9.12 8 10
SSN716-19-20J 10 4 10.5 12 20.75 13 20 10.62 8 10
SSN716-23-24-15.5G 10 4 15.5 12 23.75 13 24 12.62 8 10
SSN716-23-24-15.5J 10 4 15.5 12 23.75 13 24 12.62 8 10
SSN716-25-26-15.5B 10 4 15.5 12 25.25 13 26 13.62 8 10
SSN718-25-26-15.5G 12 6 15.5 12 25.25 15 26 13.62 10 10
