Hannay PBGMB Series Hose Reel
Hannay PBGMB Series Power Rewind Reels to handle 1" or 1-1/2" I.D. hose.
Applications: LP Gas, Fuel Delivery
• Standard hose reel is steel construction, painted graphite. Aluminum or stainless steel construction is available.
• "SB" prefix denotes polished aluminum construction, offering both reduced weight and superior corrosion resistance compared to standard steel construction.
• Choose #40 chain and sprocket drive powered by an electric, hydraulic, or compressed air motor or direct drive hydraulic rewind motor.
• Auxiliary crank rewind standard on DPB Series reels. Available on PB Series power rewind reels, at extra cost.
• Direct drive hydraulic rewind reels supplied with pinion brake. Electric powered rewind reels supplied with strap brake.
• Other brake and locking devices may be specified. See Ordering & Accessory Guide.
• Standard inlet: 90° ball bearing swivel joint with 1-1/2" female NPT threads.
• Standard outlet: flanged riser with 1" female NPT threads.
• Standard inlet, outlet riser, and hub assembly are steel.
• Other sizes and/or threads can be furnished and must be specified.
• Pressures to 350 psi (24 bar).
• Temperatures from -40° F to +350° F (-40° C to +177° C).
• Consult mdi for other pressures and temperatures.
• Chain guard available upon request, must be specified.
• Assembly B bottom wind roller is standard.
2. Upon request, reels can be supplied with drum lengths other than shown and with disc sizes in other diameters.
3. Consult mdi for reels using 1-1/2" ID hose.
4. When ordering power rewind models, prefix model number with: A = Air Rewind (supplied with control valve and 25" air hose); E = Explosion Proof Electric Rewind (2/3 HP) (supplied with explosion proof switch, solenoid, and junction box); HD = Hydraulic Rewind (not supplied with control valve); D = Direct Drive Hydraulic Rewind.
5. When ordering A, HD and D power rewind reels deduct 20 lbs. from ship weight.

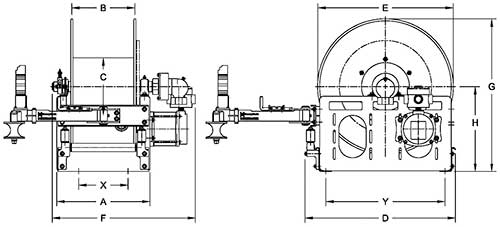

6. Dimension J is maximum, with Guidemaster® in operating position. Dimension K is maximum, with Guidemaster® in traveling position opposite rewind motor, as shown in dimensional drawing. Dimension L is maximum, with Guidemaster® in traveling position on same side as rewind motor.
7. Guidemaster® weight is approximately 21 lbs. Guidemasters® are shipped as parts.
8. Be sure to check dimensions and weights prior to ordering.
Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.
Air Rewind
Electric Rewind
