Hannay IV Series Hose Reel

Hannay IV Series Power Rewind Reels for inverted installation to handle 1-1/4", 1-3/8", or 1-1/2" I.D. Hose.

Applications: Petroleum, Fuel Delivery

• Chain and sprocket drive powered by electric, hydraulic, or compressed air motor.
• Comet brake, air caliper brake, standard.
• Standard inlet: 90° ball bearing swivel joint with 1-1/2" female NPT and 2" groove.
• Optional 2" internals also available.
• Standard outlet: Flanged riser with 1-1/2" female NPT threads.
• Inlet, riser and hub assembly are steel.
• Stainless steel or aluminum available consult mdi.
• Optional auto chain tensioner available consult mdi.
• Pressures to 600 psi (41 bar).
• Temperatures from -40° F to +400° F (-40° C to +204° C).
• Consult mdi for other pressures and temperatures.

1. Specifications subject to change.
2. Upon request, reels can be supplied with drum lengths other than shown and with disc sizes in other diameters.
3. When ordering with 2" inlet/outlet, place a 2 after IV (ie: IV220-39-40).
4. When ordering power rewind models, prefix model number with: A = Air Rewind (supplied with control valve and 18" air hose); EP = Electric Rewind (1/2 HP) 12v and 24v DC rewind (supplied with non-explosion proof switch and solenoid), 115v AC rewind is not supplied with switch but it can be ordered separately; EPJ = Explosion Proof Electric Rewind (1/2 HP) (supplied with explosion proof switch, solenoid, and junction box); HD = Hydraulic Rewind (not supplied with control valve).
5. Be sure to check dimensions and weights prior to ordering.
Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.

Air Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
AIV24-33-34 1-1/4 175 198
AIV24-33-34 1-3/8 175 198
AIV24-33-34 1-1/2 150 198
AIV22-35-36 1-1/4 200 206
AIV22-35-36 1-3/8 200 206
AIV22-35-36 1-1/2 125 206
AIV18-39-40 1-1/4 175 260
AIV18-39-40 1-3/8 125 260
AIV18-39-40 1-1/2 100 260
AIV18-39-40 2 70 260
AIV20-39-40 1-1/4 200 271
AIV20-39-40 1-3/8 175 271
AIV20-39-40 1-1/2 150 271
AIV20-39-40 2 100 271
AIV16-45-46 1-1/4 200 258
AIV16-45-46 1-3/8 125 258
AIV16-45-46 1-1/2 125 258
AIV16-45-46 2 70 258
AIV18-45-46 1-1/4 250 276
AIV18-45-46 1-3/8 175 276
AIV18-45-46 1-1/2 175 276
AIV18-45-46 2 100 276

Electric Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
EPIV24-33-34 1-1/4 175 198
EPIV24-33-34 1-3/8 175 198
EPIV24-33-34 1-1/2 150 198
EPIV22-35-36 1-1/4 200 206
EPIV22-35-36 1-3/8 200 206
EPIV22-35-36 1-1/2 125 206
EPIV18-39-40 1-1/4 175 260
EPIV18-39-40 1-3/8 125 260
EPIV18-39-40 1-1/2 100 260
EPIV18-39-40 2 70 260
EPIV20-39-40 1-1/4 200 271
EPIV20-39-40 1-3/8 175 271
EPIV20-39-40 1-1/2 150 271
EPIV20-39-40 2 100 271
EPIV16-45-46 1-1/4 200 258
EPIV16-45-46 1-3/8 125 258
EPIV16-45-46 1-1/2 125 258
EPIV16-45-46 2 70 258
EPIV18-45-46 1-1/4 250 276
EPIV18-45-46 1-3/8 175 276
EPIV18-45-46 1-1/2 175 276
EPIV18-45-46 2 100 276

Hydraulic Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
HDIV24-33-34 1-1/4 175 198
HDIV24-33-34 1-3/8 175 198
HDIV24-33-34 1-1/2 150 198
HDIV22-35-36 1-1/4 200 206
HDIV22-35-36 1-3/8 200 206
HDIV22-35-36 1-1/2 125 206
HDIV18-39-40 1-1/4 175 260
HDIV18-39-40 1-3/8 125 260
HDIV18-39-40 1-1/2 100 260
HDIV18-39-40 2 70 260
HDIV20-39-40 1-1/4 200 271
HDIV20-39-40 1-3/8 175 271
HDIV20-39-40 1-1/2 150 271
HDIV20-39-40 2 100 271
HDIV16-45-46 1-1/4 200 258
HDIV16-45-46 1-3/8 125 258
HDIV16-45-46 1-1/2 125 258
HDIV16-45-46 2 70 258
HDIV18-45-46 1-1/4 250 276
HDIV18-45-46 1-3/8 175 276
HDIV18-45-46 1-1/2 175 276
HDIV18-45-46 2 100 276

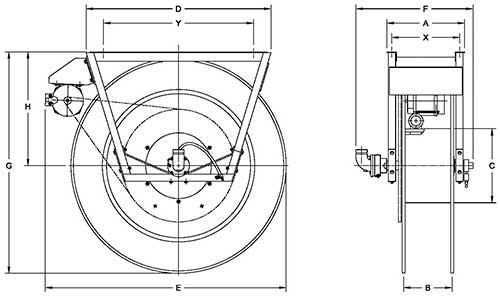

Dimensions for IV Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
AIV24-33-34 22.25 15.5 10.5 32.37 41 29.5 33.88 18 20.25 24.25
AIV22-35-36 20.25 13.5 10.5 32.37 41.75 27.5 34.88 18 18.25 24.25
AIV18-39-40 16.25 9.5 15.5 34.25 45.5 23.5 40.75 21.25 14.25 27
AIV20-39-40 18.25 11.5 15.5 34.25 45.5 25.5 40.75 21.25 16.25 27
AIV16-45-46 14.25 7.5 15.5 39 51 21.5 46.25 23.75 12.25 31.38
AIV18-45-46 16.25 9.5 15.5 39 51 23.5 46.25 23.75 14.25 31.38
EPIV24-33-34 22.25 15.5 10.5 32.37 41 29.5 33.88 18 20.25 24.25
EPV22-35-36 20.25 13.5 10.5 32.37 41.75 27.5 34.88 18 18.25 24.25
EPIV18-39-40 16.25 9.5 15.5 34.25 45.5 23.5 40.75 21.25 14.25 27
EPIV20-39-40 18.25 11.5 15.5 34.25 45.5 25.5 40.75 21.25 16.25 27
EPIV16-45-46 14.25 7.5 15.5 39 51 21.5 46.25 23.75 12.25 31.38
EPIV18-45-46 16.25 9.5 15.5 39 51 23.5 46.25 23.75 14.25 31.38
HDIV24-33-34 22.25 15.5 10.5 32.37 41 29.5 33.88 18 20.25 24.25
HDIV22-35-36 20.25 13.5 10.5 32.37 41.75 27.5 34.88 18 18.25 24.25
HDIV18-39-40 16.25 9.5 15.5 34.25 45.5 23.5 40.75 21.25 14.25 27
HDIV20-39-40 18.25 11.5 15.5 34.25 45.5 25.5 40.75 21.25 16.25 27
HDIV16-45-46 14.25 7.5 15.5 39 51 21.5 46.25 23.75 12.25 31.38
HDIV18-45-46 16.25 9.5 15.5 39 51 23.5 46.25 23.75 14.25 31.38
