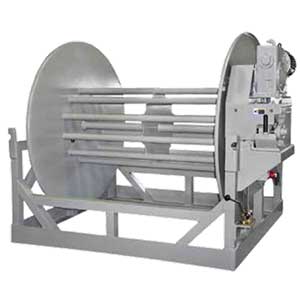

Hannay Boom Series Hose Reel

Hannay Boom Series Power Rewind Reels to handle hose in off-shore or shallow harbor operations.

Applications: Ship to Shore Oil Transport, Bulk Oil Transfer, Bulk Transfer, Discharge, High Volume Application

• 3" square tubing frames, braced at all stress points
• Heavy-duty 1/4" thick plate rolled discs with large rolled edges to avoid hose scuffing
• Drum features an open pipe spacer design with inner 3/8" steel plate reinforcements to prevent the entrapment of dirt, debris, and water accumulation
• Heavy-duty lubricated bearings
• Four lifting eyes or optional fork rails for transportation and installation
• Positive pin-lock to keep the reel in place
• 1/2" air evacuation drain
• Hydraulic caliper disc brake
• #50 chain and sprocket rewind system; optional #80 chain available
• MNPT or flange connection; optional cam lock fittings available
• Available with gear reductions, clutches, and brake systems to handle 3", 4", 6", 8",
