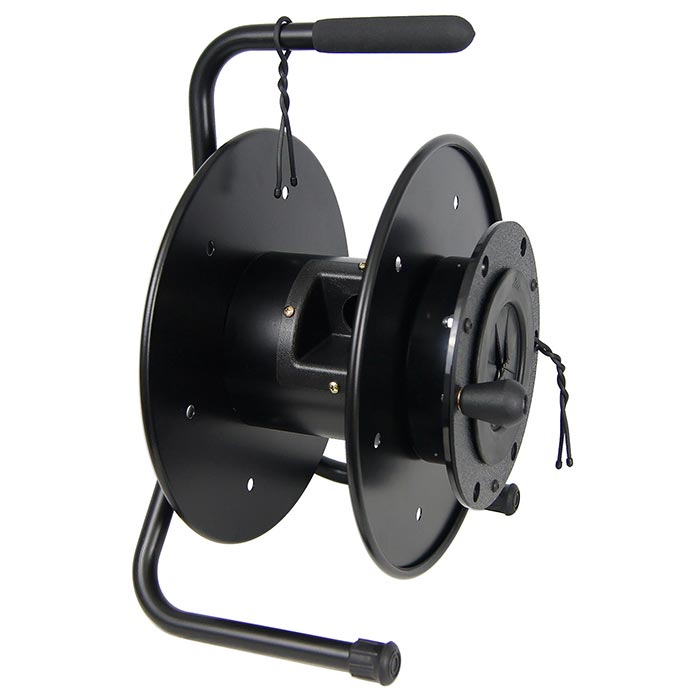

Series AVF-14 Click for Larger View

Call us TODAY at 727-835-0674 or
Toll Free at 800-761-4298

Get A Free Quote!

*Reel does not include cable. Please call mdi for available cable options.

Hannay AVF-14 Series Cable Reel

Hannay AVF-14 Series Designed specifically for the unique needs of Broadcast SMPTE, TAC and opticalCON cable.
For use with 3mm to 9.2mm or larger broadcast fiber optic cable.

Applications: Audio Video, Communications, Mining, Cable, Fiber Optic

• Lightweight aluminum construction, under 10 lbs., for easy transport and handling.
• Modular frame style, handle and legs can be easily replaced in the event of damage.
• Designed for Tactical Fiber and Hybrid Fiber cable types.
• Quality construction designed for harsh outdoor environments.
• Non-reflective black matte finish is standard.
• External and/or internal drum storage with protective rubber grommet for easy access to lead out cable, while keeping dirt and debris out.
• Crank handle permanently attached to disc.
• Equipped with cam-lock drag brake system.
• Equipped with two durable rubber twist ties for cable ends.

1. Specifications subject to change.
2. Be sure to check dimensions and weights prior to ordering.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model Size (in.) Length (ft.) Weight (lbs)
AVF-14 TAC 1 (4.5 mm) 1500 9
AVF-14 TAC 2 (5 mm) 1300 9
AVF-14 TAC 4 (5.5 mm) 1000 9
AVF-14 TAC 6 (6 mm) 800 9
AVF-14 TAC 12 (7 mm) 600 9
AVF-14 SMPTE 311M (9.2 mm) 350 9

Dimensions for AVF-14 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H
AVF-14 9.5 6 6 13.5 14 13.25 18.25 7.94
