AVD-1
 Series AVD-1 Click for Larger View
AVD-2
 Series AVD-2 Click for Larger View

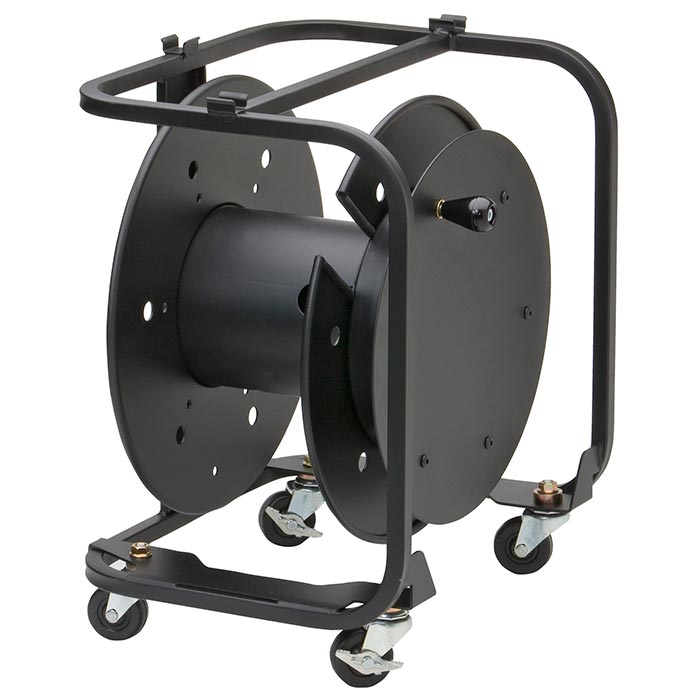

AVD-3
 Series AVD-3 Click for Larger View

Call us TODAY at 727-835-0674 or
Toll Free at 800-761-4298

Get A Free Quote!

*Reel does not include cable. Please call mdi for available cable options.

Hannay AVD Series Cable Reel

Hannay AVD Series Portable Cable Storage Reels with Slotted Divider Discs.

Applications: Audio Video, Communications, Mining, Cable

• Communication, broadcast, and pro-audio applications.
• Rugged steel frame and aluminum spool construction.
• Black, non-reflective matte finish.
• Slotted divider disc provides 2" wide space for storage of short cable.
• Unobstructed access to both cable connector ends with slotted divider disc
• Frame clips allow stacking of reels.
• Ergonomic carrying handle.
• Adjustable cam-lock drag brake locks cable in place.
• Equipped with two durable rubber twist ties for cable ends.
• Optional heavy-duty, locking caster wheels available on AVD-2 reel (P/N 9949.0072).

1. Specifications subject to change.
2. Casters will add 2-3/4" to G dimension on AVD-1 and AVD-3 models. Casters will add 3-1/2" to G dimension on AVD-2 models.
3. Be sure to check dimensions and weights prior to ordering.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model O.D. Size (in.) Length (ft.) Weight (lbs)
AVD-1 0.25 500 15
AVD-1 0.32 325 15
AVD-1 0.38 200 15
AVD-1 0.41 175 15
AVD-1 0.45 125 15
AVD-1 0.49 100 15
AVD-2 0.41 600 22
AVD-2 0.45 500 22
AVD-2 0.49 425 22
AVD-2 0.58 250 22
AVD-2 0.67 200 22
AVD-3 0.32 700 17
AVD-3 0.38 500 17
AVD-3 0.41 400 17
AVD-3 0.45 350 17
AVD-3 0.49 300 17
AVD-3 0.58 175 17

Dimensions for AVD Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H
AVD-1 10.25 6 6 13.75 11.75 13.25 14.25 7
AVD-2 13.13 7.5 8 20 18 13.25 20.5 10
AVD-3 12.82 7 6 16 15 13.25 16.88 7.88

   Click to view Reels Accessories
