Hannay AVC20-14-16 Series Portable Audio Video Cable Storage Reel

Hannay AVC20-14-16 Series Portable Audio Video Cable Storage Reel for compact storage.

Applications: Audio Video, Communications, Mining, Cable

• Direct crank rewind.
• Adjustable cam-lock drag brake.
• Non-reflective, black matte finish standard.
• Optional pinlock available.
• Optional storage drum extension.
• Equipped with one durable rubber twist tie for cable ends.

Model shown in image represents standard configuration

1. Specifications subject to change.
2. Be sure to check dimensions and weights prior to ordering.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model Size Length (ft.) Weight (lbs)
AVC20-14-16 0.25 OD 1700 18
AVC20-14-16 0.32 OD 950 18
AVC20-14-16 0.38 OD 725 18
AVC20-14-16 0.41 OD 600 18
AVC20-14-16 0.45 OD 450 18
AVC20-14-16 0.50 OD 425 18
AVC20-14-16 0.58 OD 250 18
AVC20-14-16 0.67 OD 175 18

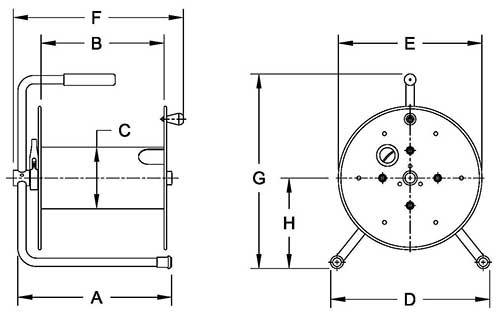

Dimensions for AVC20-14-16 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H
AVC20-14-16 15 12 6 15.5 14 16.75 19.25 8.62
