*Reel does not include hose. Please call mdi for available hose options.

Hannay 600 Series Twin Hose Reel

Hannay 600 Series Spring Rewind Reels to handle 1/4", 3/8", 1/2", or 3/4" I.D. Twin hose.

Applications: Air, Agriculture, Construction, Grounds Maintenance, Hydraulics, Lawn Care, Industrial, Land Drilling, Offshore Drilling, Maritime, Mining, Transportation, Utilities, Lubrication, Processing, Spray, Spray Painting, Water

• Roll-formed channel frame for heavy-duty applications
• Non-sparking ratchet assembly
• Declutching arbor to prevent damage from reverse winding
• Standard inlets: 90° balanced pressure swivel joints, 1/2" female NPT threads (1" inlet available)
• Standard outlets: 1/2" female NPT threads (3/4"" outlet available)
• Standard pressures to 3,000 psi (207 bar), available up to 10,000 psi (690 bar) – must specify
• Temperatures from -60° F to +250° F (-51°C to +121°C)
• Consult mdi for other pressures and temperatures
• 4-way roller assembly
• Constant tension is available mdi mdi
• Optional full flow swivel joint is available upon request. Add 1 3/4" to F dimension

1. Specifications subject to change.
2. Reel models and capacities shown are for standard drag applications; for vertical lift applications, consult mdi.
3. Other sizes, from standard components, available on request.
4. Be sure to check dimensions and weights prior to ordering.
5. Standard outlets are 1/2" female NPT threads. Must specify if 1" joints and 3/4" outlet risers are required.
6. For hydraulic tool circuit applications, full flow swivels with Viton seals are recommended (add 2.25" to overall width of reel in chart).
Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.
** Model 618-30-31-15.5A Must specify if 1” joints and 3/4” outlet risers are required.

Spring Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
615-23-24B 1/4 65 80
615-23-24B 3/8 60 80
615-23-24B 1/2 30 80
617-25-26-15.5B 1/4 75 93
617-25-26-15.5B 3/8 75 93
617-25-26-15.5B 1/2 50 93
617-25-26-15.5A 1/4 100 120
617-25-26-15.5A 3/8 85 120
618-30-31-15.5A** 1/2 100 130
618-30-31-15.5A** 3/4 50 130

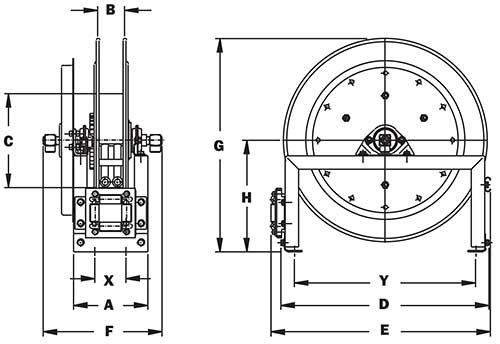

Dimensions for 600 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
615-23-24B 8.25 3 10.5 23.25 24.38 13 23.88 12.5 3.5 20
617-25-26-15.5B 10.25 5 15.5 25 26.12 15 25.88 13 5.5 21.75
617-25-26-15.5A 10.25 5 15.5 25 26.12 15.75 25.88 13.5 5.5 21.75
618-30-31-15.5A** 11.25 6 15.5 28.5 29.62 16.75 31.38 16.75 6.5 25.25
