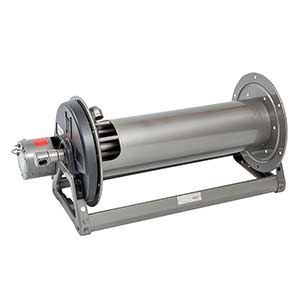

Hannay 4000 Series Hose Reel

Hannay 4000 Series Manual Rewind Reels to handle single 3/4" or 1" I.D. Hose.

Applications: Water Supply, Fire Protection, Chemical Transfer, Industrial, Spray, Grounds Maintenance, Lawn Care, Agriculture, Processing, Fire, Construction

• Lightweight, compact reels designed for long lengths of hose in manual and power rewind
• Direct crank rewind is removable
• Chain and sprocket drive powered by electric, hydraulic, or compressed air motor
• Manual reels include cam-lock drag brake, spring-actuated pin lock
• Comet brake is standard on power rewind reels
• Standard inlet: 90° ball bearing swivel joint, 1" female NPT threads
• Standard outlet: 1" female NPT threads
• Optional rollers: specify roller position when ordering
• Standard pressures to 2,000 psi (138 bar), available up to 4,000 psi (276 bar) – must specify
• Temperatures from -60° F to +250° F (-51° C to +121° C)
• Consult mdi for other pressures and temperatures

1. Specifications subject to change.
2. Upon request, reels can be supplied with drum lengths other than shown.
3. Weights shown in chart are for crank rewind models. Add 18 lbs. for power rewind.
4. Dimension "F" is the overall length of standard model reels. Crank rewind reels require 3-1/2" clearance to remove or install crank handle.
5. When ordering power rewind models, prefix model number with: A = Air Rewind, E = Electric Rewind, HD = Hydraulic Rewind.
6. Air rewind reels are supplied with control valve and 18" air hose; 12v and 24v DC rewind reels are supplied with switch and solenoid; 115v AC rewind reels are not supplied with switch but can be ordered separately; hydraulic rewind reels are not supplied with control valve.
7. Be sure to check dimensions and weights prior to ordering.
Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
4018-17-18 3/4 50 36
4018-17-18 1 35 36
4024-17-18 3/4 100 46
4024-17-18 1 50 46
4030-17-18 3/4 150 57
4030-17-18 1 75 57
4038-17-18 3/4 200 70
4038-17-18 1 100 70

Electric Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
E4018-17-18 3/4 50 54
E4018-17-18 1 35 54
E4024-17-18 3/4 100 64
E4024-17-18 1 50 64
E4030-17-18 3/4 150 75
E4030-17-18 1 75 75
E4038-17-18 3/4 200 88
E4038-17-18 1 100 88

Air Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
A4018-17-18 3/4 50 51
A4018-17-18 1 35 51
A4024-17-18 3/4 100 61
A4024-17-18 1 50 61
A4030-17-18 3/4 150 72
A4030-17-18 1 75 72
A4038-17-18 3/4 200 85
A4038-17-18 1 100 85

Hydraulic Rewind

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
HD4018-17-18 3/4 50 51
HD4018-17-18 1 35 51
HD4024-17-18 3/4 100 61
HD4024-17-18 1 50 61
HD4030-17-18 3/4 150 72
HD4030-17-18 1 75 72
HD4038-17-18 3/4 200 85
HD4038-17-18 1 100 85

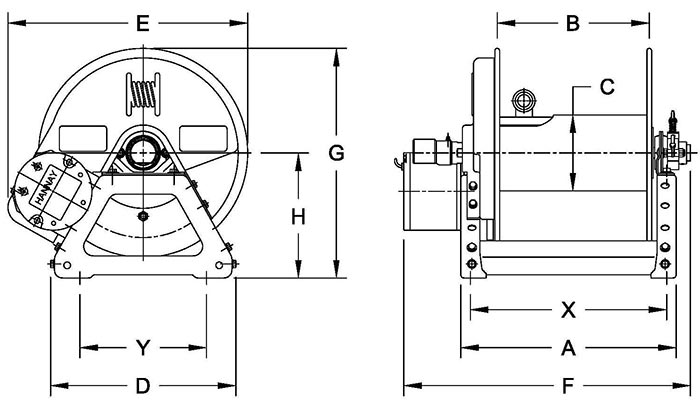

Dimensions for 4000 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
4018-17-18 15 10 8 14.12 17.5 26.5 18.12 9.88 13.5 10
4024-17-18 21 16 8 14.12 17.5 32.5 18.12 9.88 19.5 10
4030-17-18 27 22 8 14.12 17.5 38.5 18.12 9.88 25.5 10
4038-17-18 35 30 8 14.12 17.5 46.5 18.12 9.88 33.5 10
A4018-17-18 15 10 8 14.12 19 20.5 18.12 9.88 13.5 10
A4024-17-18 21 16 8 14.12 19 26.5 18.12 9.88 19.5 10
A4030-17-18 27 22 8 14.12 19 32.5 18.12 9.88 25.5 10
A4038-17-18 35 30 8 14.12 19 40.5 18.12 9.88 33.5 10
E4018-17-18 15 10 8 14.12 19 20.75 18.12 9.88 13.5 10
E4024-17-18 21 16 8 14.12 19 26.75 18.12 9.88 19.5 10
E4030-17-18 27 22 8 14.12 19 32.75 18.12 9.88 25.5 10
E4038-17-18 35 30 8 14.12 19 40.75 18.12 9.88 33.5 10
HD4018-17-18 15 10 8 14.12 19 20.5 18.12 9.88 13.5 10
HD4024-17-18 21 16 8 14.12 19 26.5 18.12 9.88 19.5 10
HD4030-17-18 27 22 8 14.12 19 32.5 18.12 9.88 25.5 10
HD4038-17-18 35 30 8 14.12 19 40.5 18.12 9.88 33.5 10
