Hannay 3000 Series Hose Reel

Hannay 3000 Series Manual Rewind Reels to handle 3/4" or 1" I.D. hose.

Applications: Fire Protection, Industrial, Fuel Delivery, Land Drilling, Offshore Drilling, Maritime, Mining, Spray Operations

• Economical manual rewind reels for long lengths of hose
• Choose disc rewind or removable direct crank rewind
• Supplied with spring-actuated pin lock
• Standard inlet: 90° ball bearing swivel joint, 1" female NPT threads
• Standard outlet: 1" female NPT thread
• Standard: inlet, outlet riser, and hub assembly are steel. Options: swivel joint also available in aluminum or stainless steel, riser and hub assembly also available in stainless steel
• Rollers and roller mounting brackets are accessory items. Specify roller position
• Standard pressures to 2,000 psi (138 bar), available up to 4,000 psi (276 bar) – must specify
• Temperatures from -60° F to +250° F (-51° C to +121° C)
• Consult mdi for other pressures and temperatures

1. Specifications subject to change.
2. Upon request, reels can be supplied with drum lengths other than shown and with disc sizes in other diameters.
3. Power rewind NOT available on these models.
4. Dimension "F" is the overall length of standard model reels. Crank rewind models: 3-1/2" clearance required to remove crank handle.
5. Subtract 5" from "F" dimension for disc rewind models.
6. Be sure to check dimensions and weights prior to ordering.
Note: A flexible connector must be used between the inlet pipe and the inlet swivel joint.
Some models may require a different motor and/or clutch reduction unit depending on your application.

Manual/Hand Crank

*Scroll to the right on mobile to see entire chart
Model I.D. Size (in.) Hose Length (ft.) Weight (lbs)
3016-25-26 3/4 100 85
3016-25-26 1 75 85
3020-25-26 3/4 150 94
3020-25-26 1 100 94
3024-25-26 3/4 200 103
3024-25-26 1 125 103
3028-25-26 3/4 275 113
3028-25-26 1 175 113

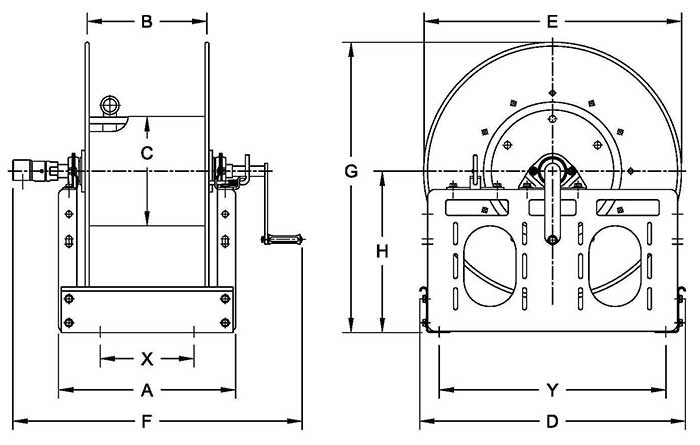

Dimensions for 3000 Series
DIMENSIONS (inches)
*Scroll to the right on mobile to see entire chart
Model A B C D E F G H X Y
3016-25-26 13 7.5 10.5 25.5 24.75 24.5 27.88 15.5 7.75 21.75
3020-25-26 17 11.5 10.5 25.5 24.75 28.5 27.88 15.5 9 21.75
3024-25-26 21 15.5 10.5 25.5 24.75 32.5 27.88 15.5 13 21.75
3028-25-26 25.5 20 10.5 25.5 24.75 37 27.88 15.5 17.5 21.75

   Click to view Reels Accessories
